De INVICTUS COAXIAL verbindt digitale bronnen als streamers met uw Digital-to-Analog Converter (DAC). Het fenomeen ‘interferentie’ is hier volledig en definitief geëlimineerd. Puur geluidssignaal, dat is wat deze coaxiale kabel doorgeeft: niets meer en niets minder.

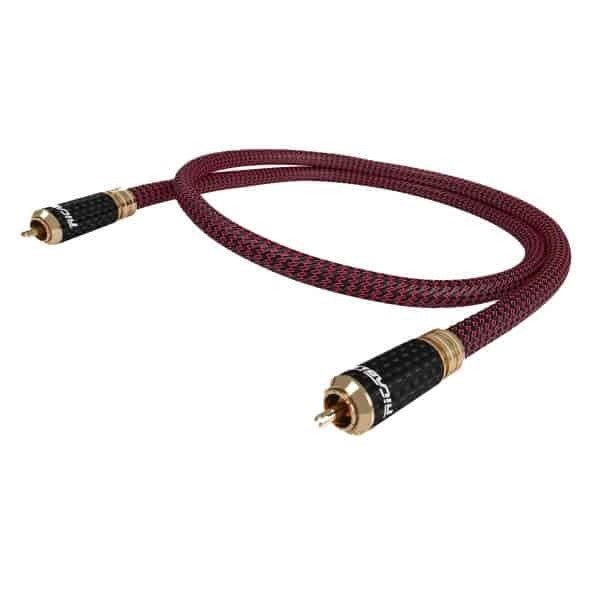

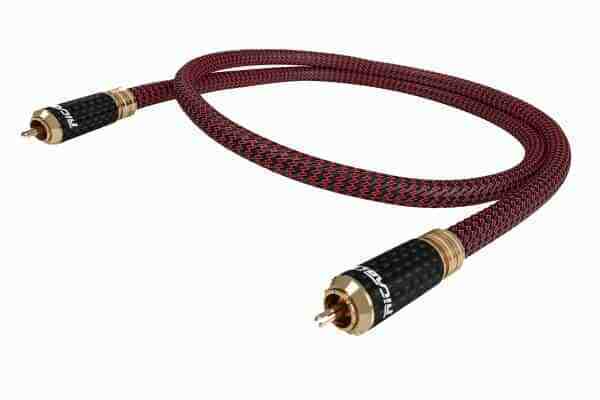

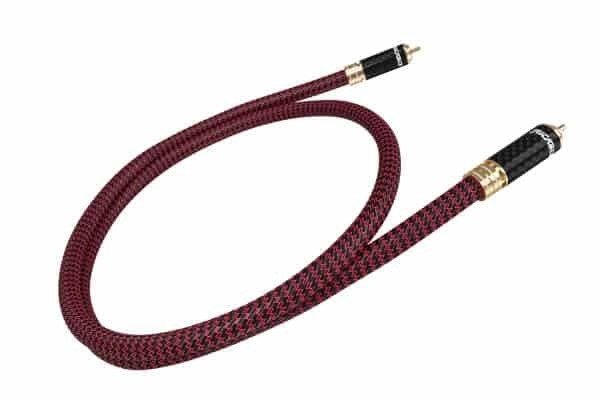

Invictus Coaxial
INVICTUS COAXIAL geeft ook de meest geavanceerde digitale bronnen de ruimte
€378,00 – €596,00
Over het product

CE gecertificeerd

Ontwikkeld en
handgemaakt in Italië

FCC gecertificeerd

RoHS gecertificeerd

Invictus Coaxial
Kenmerken

THE BEST SUPPORT FOR YOUR DIGITAL CONNECTION:
CONDUCTOR MARC 70% compared to OFC:
OFC COPPER CONNECTORS 40% compared to BRASS:
TRIAXIAL GEOMETRY:
RNR (RICABLENOISE REDUCTION) TECHNOLOGY:
Extra informatie
Lengte | 0,5 m, 1 m, 2 m, 3 m, 5 m |
---|---|
Capacity | 45 pF/m |
Impedance | 75 Ω Guaranteed and Controlled |
Resistance | 20 Ω/km |
External Diameter | Ø 11.80 mm |
Conductors Section | 1.2 mm² |
Construction Conductors | 118 twisted wires for the conductor |
Strand Diameter | 0.08 mm |
Material Conductors | MARC Pure Copper 7N 99.99999% |
Geometry | Coaxial Triaxial |
Dielectric Insulating | R-TEC Technopolymer |
Internal Shielding | Copper OFC braid with high coverage surmounted by R-TEC polymer insulation |
External Shielding | Copper OFC braid with high coverage |
External Protection | High Density Sheath with Polyethylene/Nylon Sock |
Connector Material | Pure Copper OFC |
Contacts | Hand welded with special Eutectic Alloy Sn/Ag/Cu |
Connectors Features | Oversized 6-element Ground Rings, Monobloc Body in OFC Copper 24 K Gold Plated, Teflon Dielectric, Gold Plated with specific Gold/Copper electrolysis technique, Expansion Central Pole |
